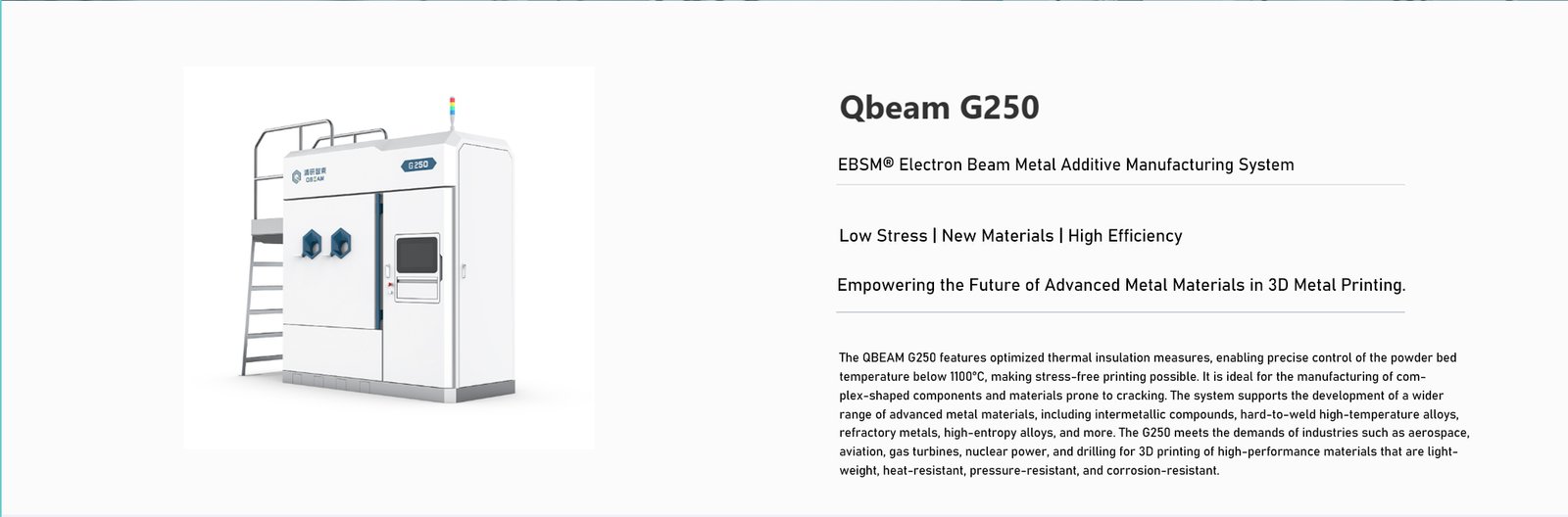

Qbeam G250 – EBSM® Electron Beam Metal Additive Manufacturing System

Original price was: $88,700.00.Current price is: $73,000.00.

Categories: Additive Manufacturing, Electron Beam Additive Manufacturing

Description
Reviews (0)

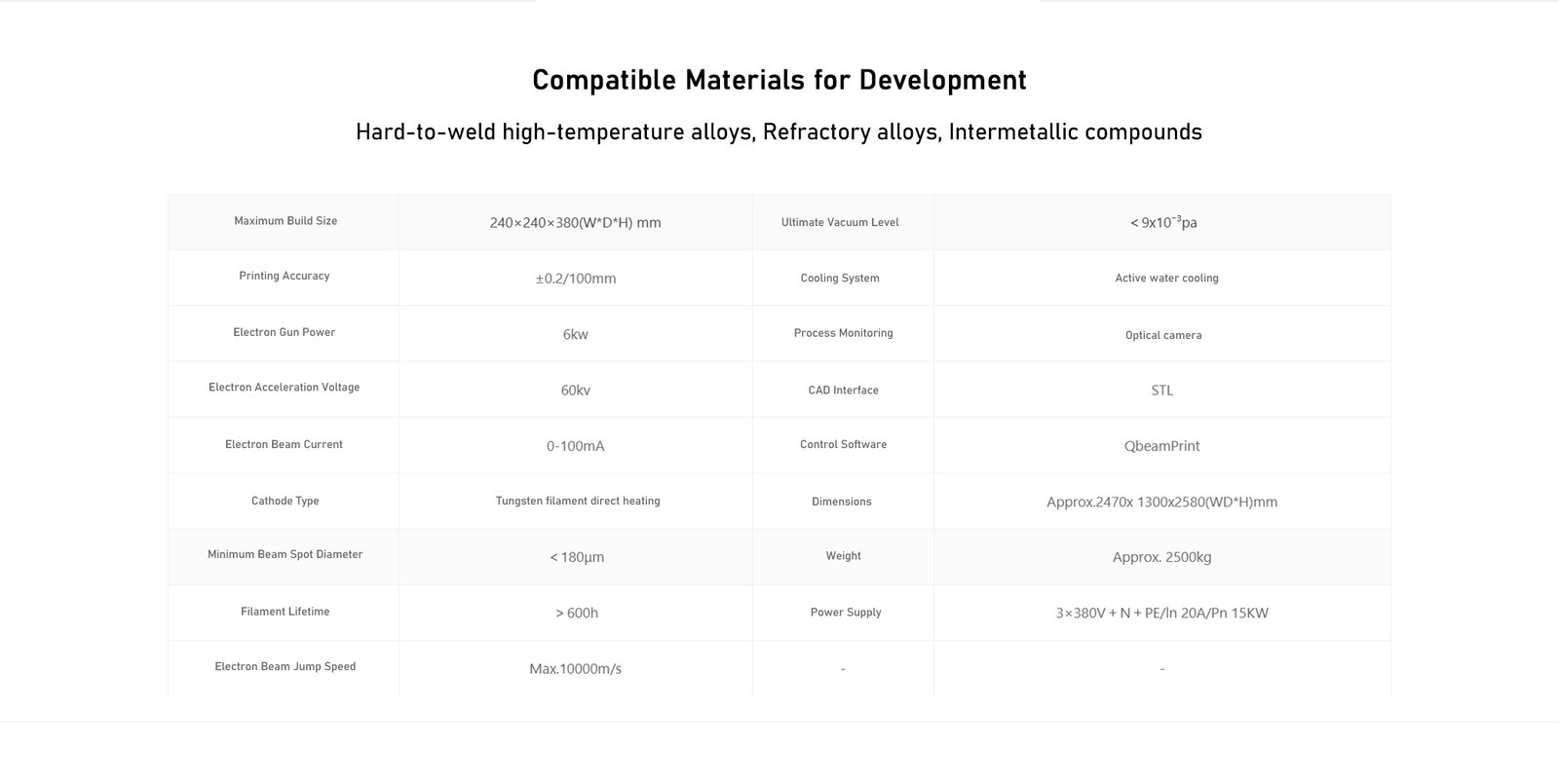

Parameter

Maximum Build Size: 240×240×380(W*D*H) mm
Ultimate Vacuum Level: ＜9×10⁻³pa
Printing Accuracy: ±0.2/100mm
Cooling System: Active water cooling
Electron Gun Power: 6KW
Process Monitoring: Optical camera
Electron Acceleration Voltage: 60kv
CAD Interface: STL
Electron Beam Current: 0-100mA
Control Software: QbeamPrint
Cathode Type: Tungsten filament direct heating
Dimensions: Approx.2470x 1300×2580(W*D*H)mm
Minimum Beam Spot Diameter: ＜180μm
Weight: Approx. 2500kg
Filament Lifetime: ＞600h
Power Supply: 3×380V＋N＋PE/ln 20A/Pn 15KW
Electron Beam Jump Speed: Max.10000m/s
