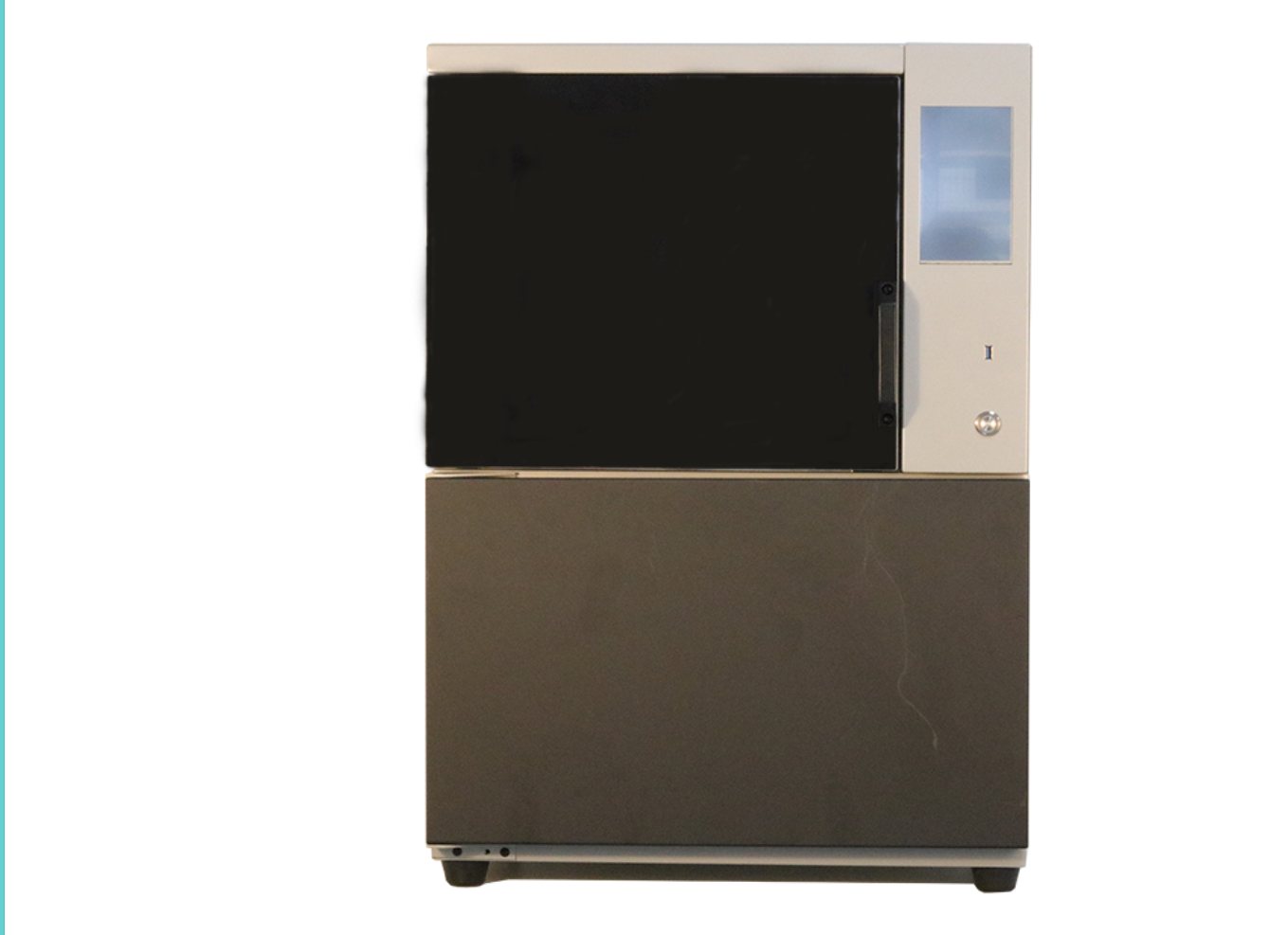

PT100 – Dual Cylinder Sinking DLP Ceramic 3D Printer; Ceramic Slurry; Multifunctional Composite Material Testing

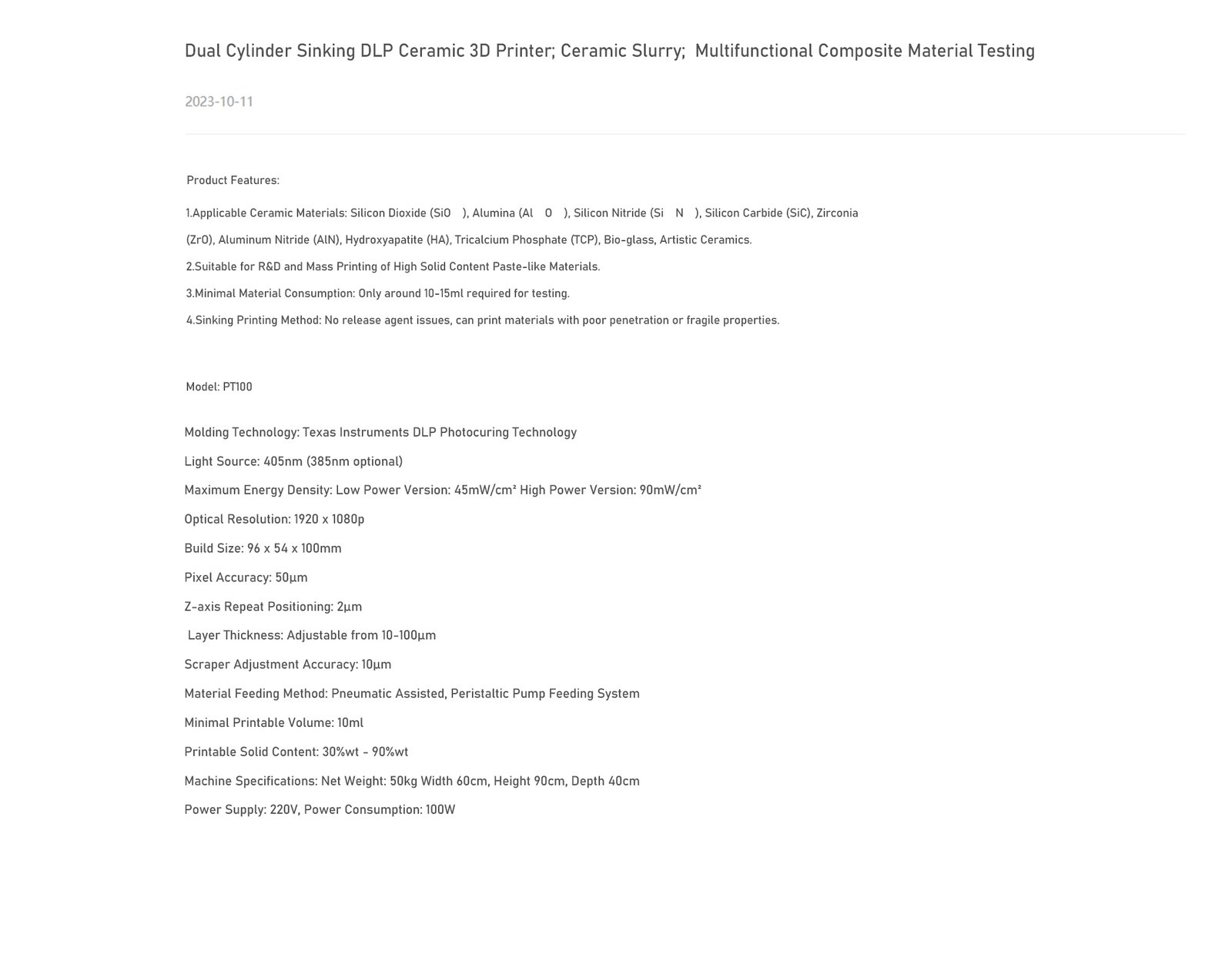

Parameter

1. Model: PT100
2. Molding Technology: Texas Instruments DLP Photocuring Technology
3. Light Source: 405nm (385nm optional)
4. Maximum Energy Density: Low Power Version: 45mW/cm²;  High Power Version: 90mW/cm²
5. Optical Resolution: 1920 x 1080p
6. Build Size: 96 x 54 x 100mm
7. Pixel Accuracy: 50μm
8. Z-axis Repeat Positioning: 2μm
9. Layer Thickness: Adjustable from 10-100μm
10. Scraper Adjustment Accuracy: 10μm
11. Material Feeding Method: Pneumatic Assisted, Peristaltic Pump Feeding System
12. Minimal Printable Volume: 10ml
13. Printable Solid Content: 30%wt – 90%wt
14. Machine Specifications: Net Weight: 50kg Width 60cm, Height 90cm, Depth 40cm
15. Power Supply: 220V, Power Consumption: 100W
