Formlabs Fuse 1+ 30W

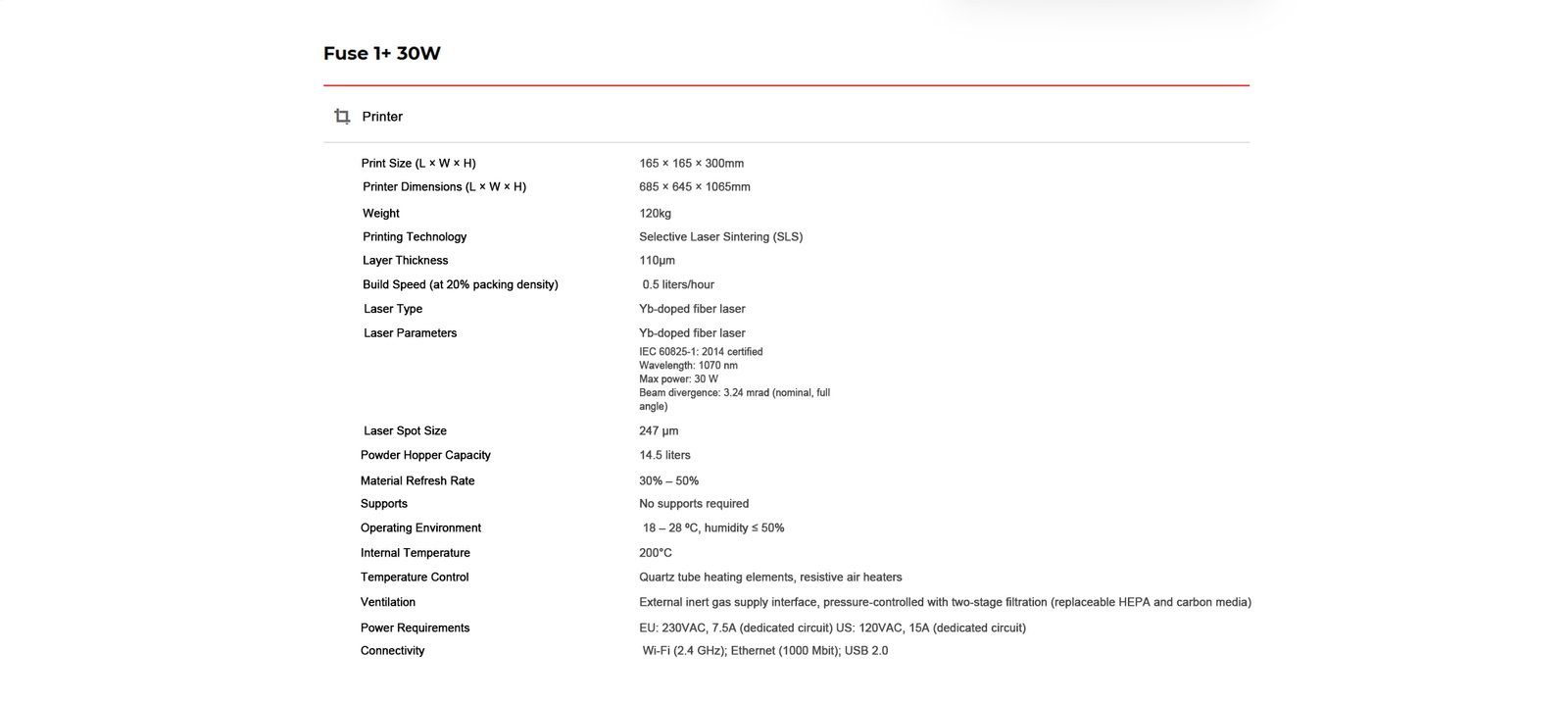

Printer Parameter

1. Print Size (L × W × H): 165 × 165 × 300mm
2. Printer Dimensions (L × W × H): 685 × 645 × 1065mm
3. Weight: 120kg
4. Printing Technology: Selective Laser Sintering (SLS)
5. Layer Thickness: 110μm
6. Build Speed (at 20% packing density): 0.5 liters/hour
7. Laser Type: Yb-doped fiber laser
8. Laser Parameters: Yb-doped fiber laser; IEC 60825-1: 2014 certified; Wavelength: 1070 nm; Max power: 30 W; Beam divergence: 3.24 mrad (nominal, full angle)
9. Laser Spot Size: 247 μm
10. Powder Hopper Capacity: 14.5 liters
11. Material Refresh Rate: 30% – 50%
12. Supports: No supports required
13. Operating Environment: 18 – 28 ºC, humidity ≤ 50%
14. Internal Temperature: 200°C
15. Temperature Control: Quartz tube heating elements, resistive air heaters
16. Ventilation: External inert gas supply interface, pressure-controlled with two-stage filtration (replaceable HEPA and carbon media)
17. Power Requirements: EU: 230VAC, 7.5A (dedicated circuit); US: 120VAC, 15A (dedicated circuit)
18. Connectivity: Wi-Fi (2.4 GHz); Ethernet (1000 Mbit); USB 2.0
