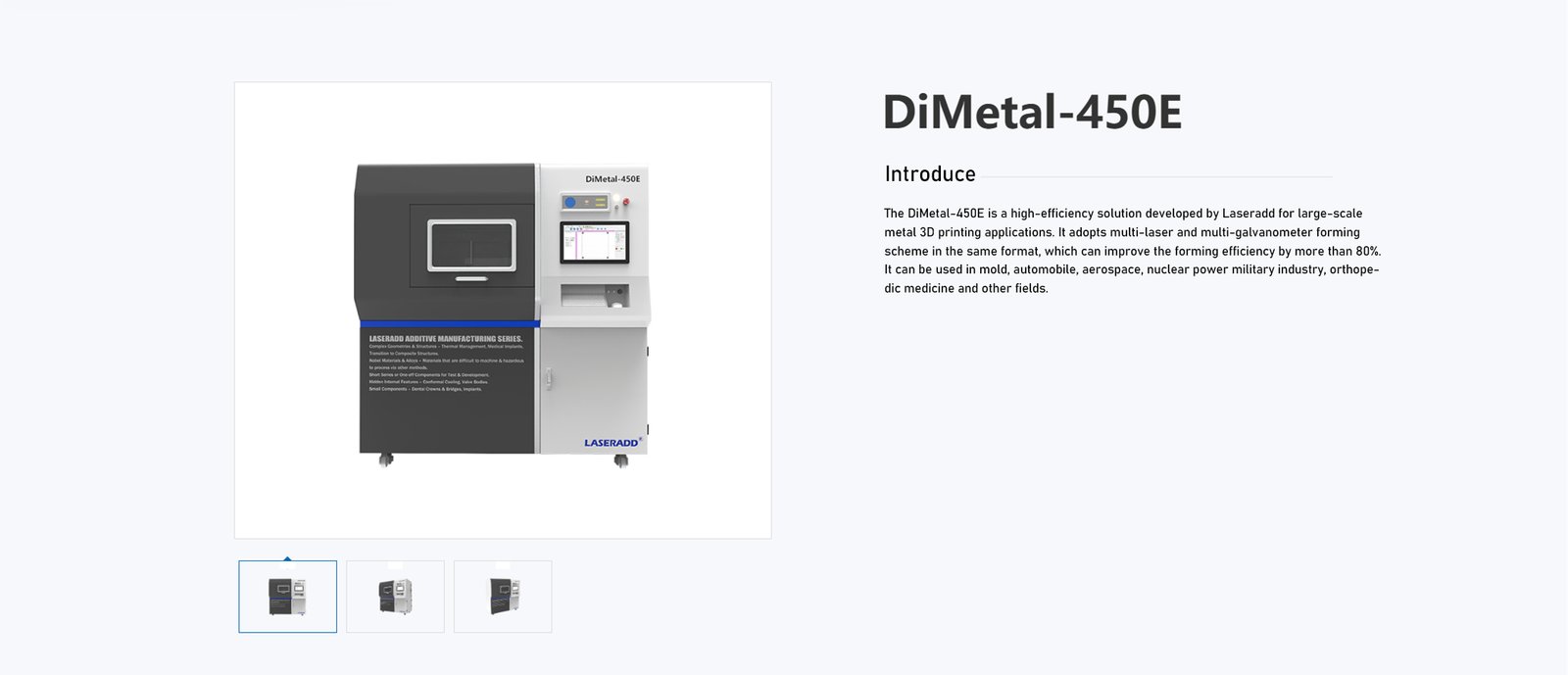

DiMetal-450E: The High-Efficiency Solution for Large-Scale Metal 3D Printing Applications

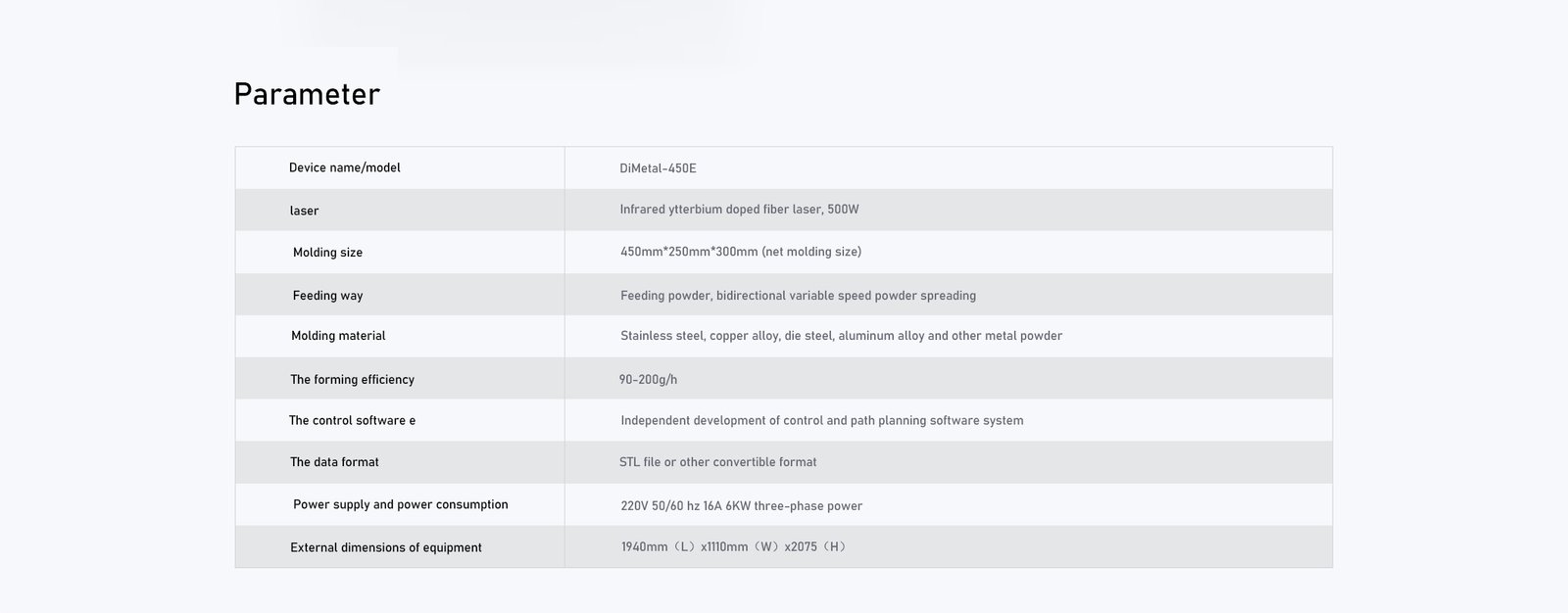

Parameter

1. Device name/model: DiMetal-450E
2. Laser: Infrared ytterbium doped fiber laser, 500W
3. Molding size: 450mm*250mm*300mm (net molding size)
4. Feeding way: Feeding powder, bidirectional variable speed powder spreading
5. Molding material: Stainless steel, copper alloy, die steel, aluminum alloy and other metal powder
6. The forming efficiency: 90-200g/h
7. The control software: Independent development of control and path planning software system
8. The data format: STL file or other convertible formats
9. Power supply and power consumption: 220V 50/60 hz 16A 6KW three-phase power
10. External dimensions of equipment: 1940mm(L)x1110mm(W)x2075(H)
