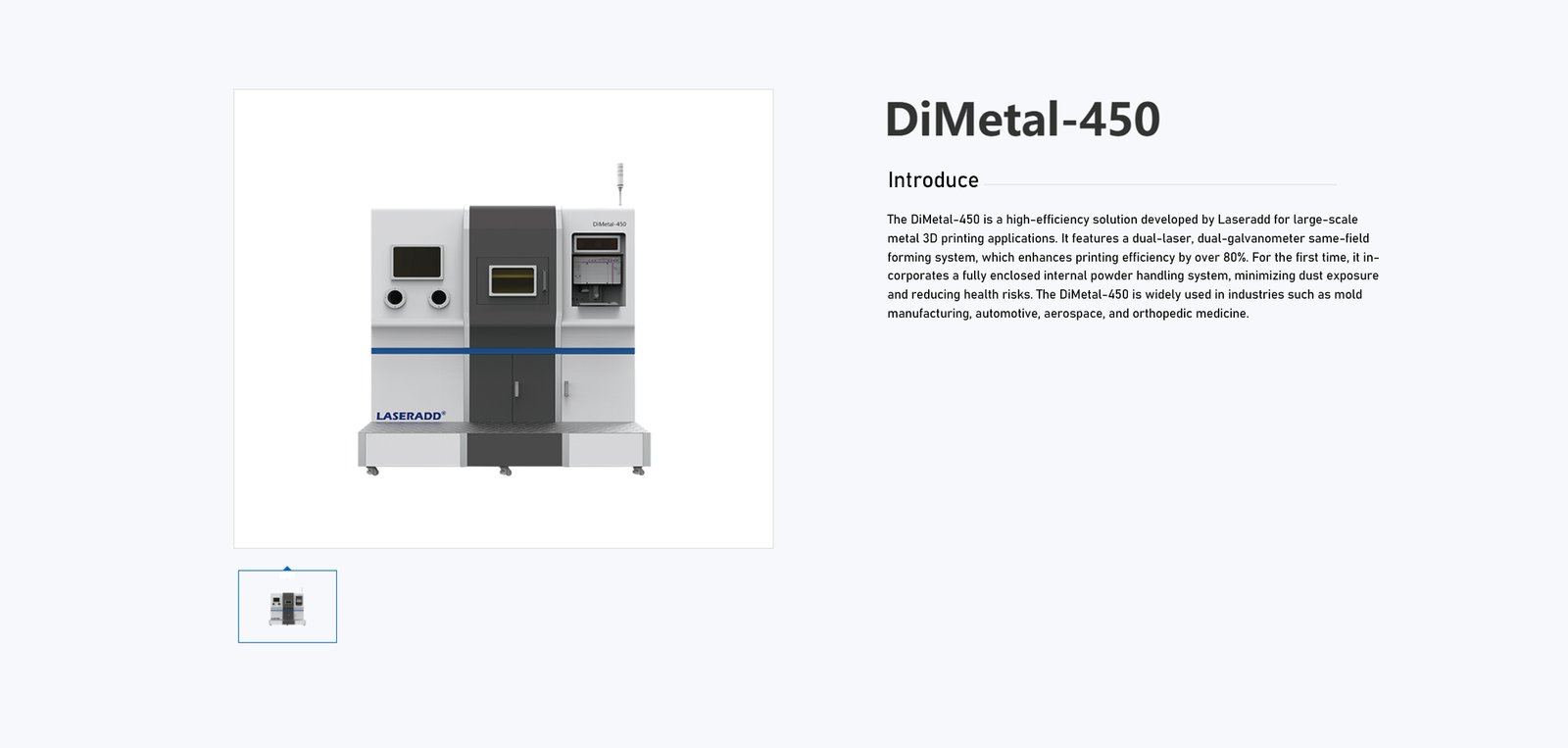

DiMetal-450: Multi-Laser & Large-Scale Metal 3D Printer

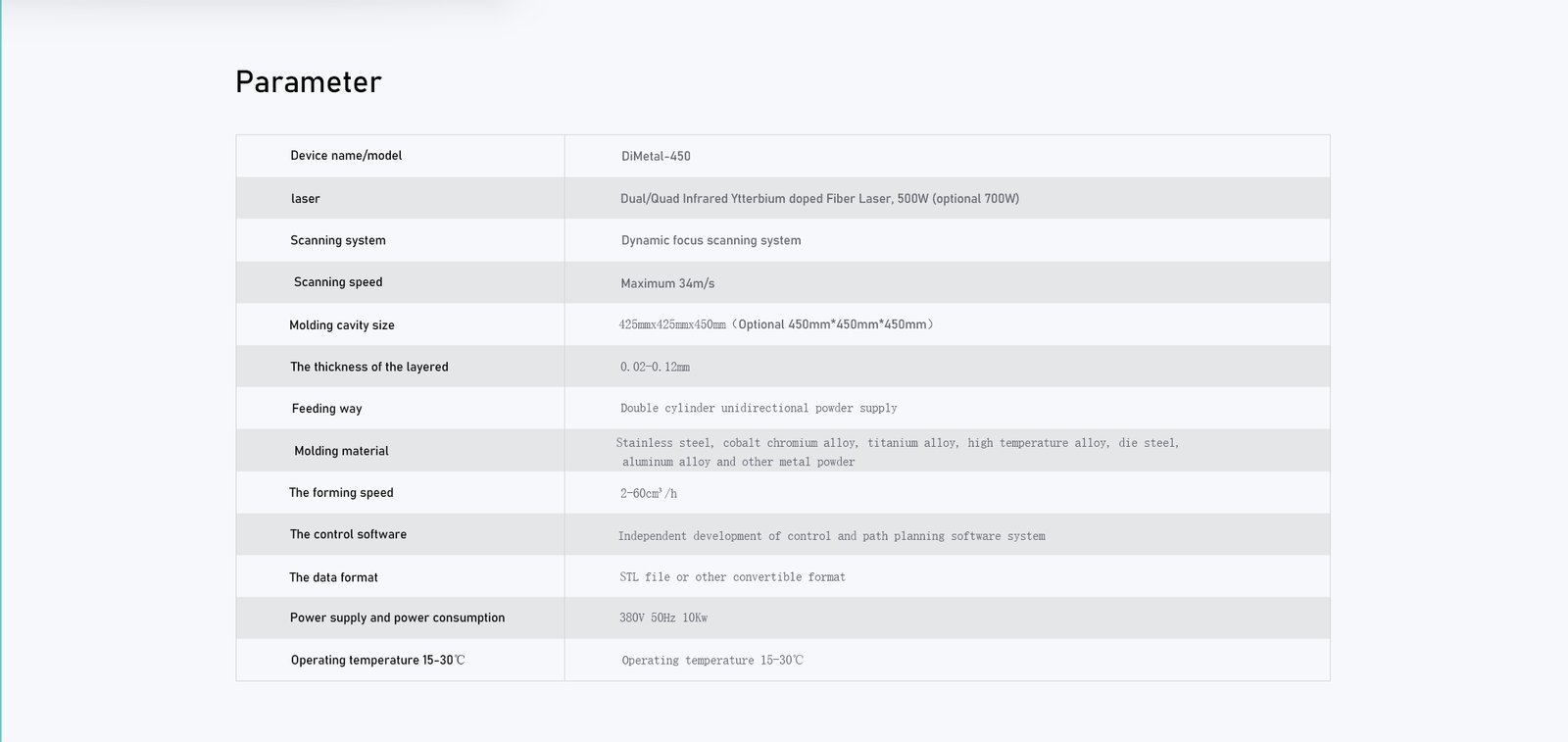

Parameter

1. Device name/model: DiMetal-450
2. Laser: Dual/Quad Infrared Ytterbium doped Fiber Laser, 500W (optional 700W)
3. Scanning system: Dynamic focus scanning system
4. Scanning speed: Maximum 34m/s
5. Molding cavity size: 425mmx425mmx450mm（Optional 450mm*450mm*450mm）
6. The thickness of the layered:0.02-0.12mm
7. Feeding way: Double cylinder unidirectional powder supply
8. Molding material: Stainless steel, cobalt chromium alloy, titanium alloy, high temperature alloy, die steel, aluminum alloy and other metal powder
9. The forming speed: 2-60cm³/h
10. The control software: Independent development of control and path planning software system
11. The data format: STL file or other convertible formats
12. Power supply and power consumption: 380V 50Hz 10Kw
13. The environment temperature: Operating temperature 15-30℃
