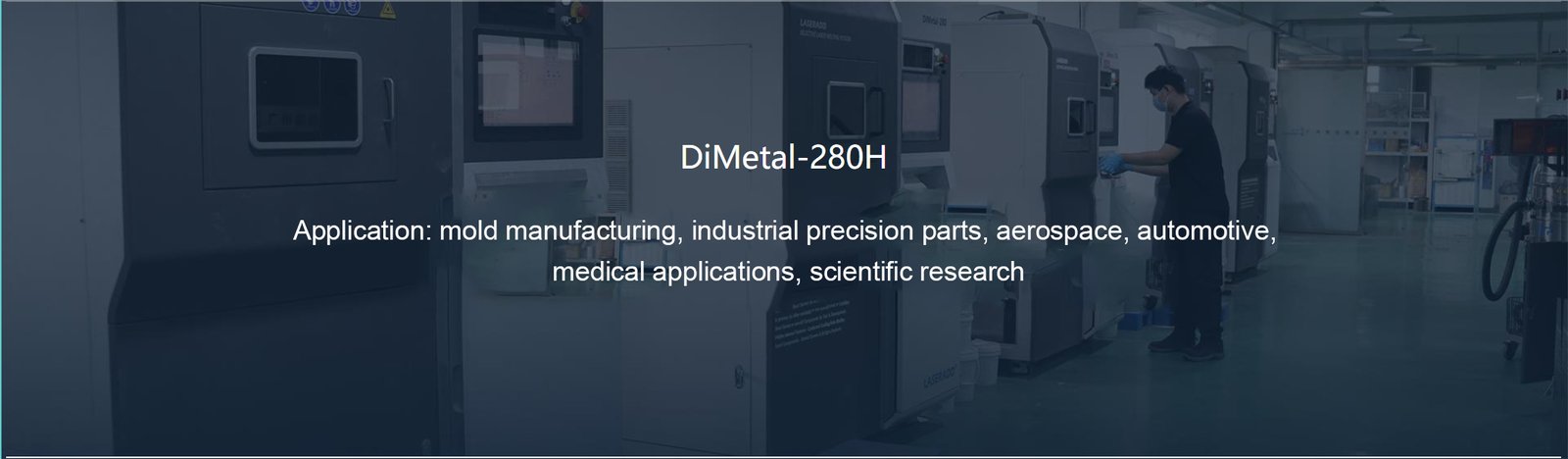

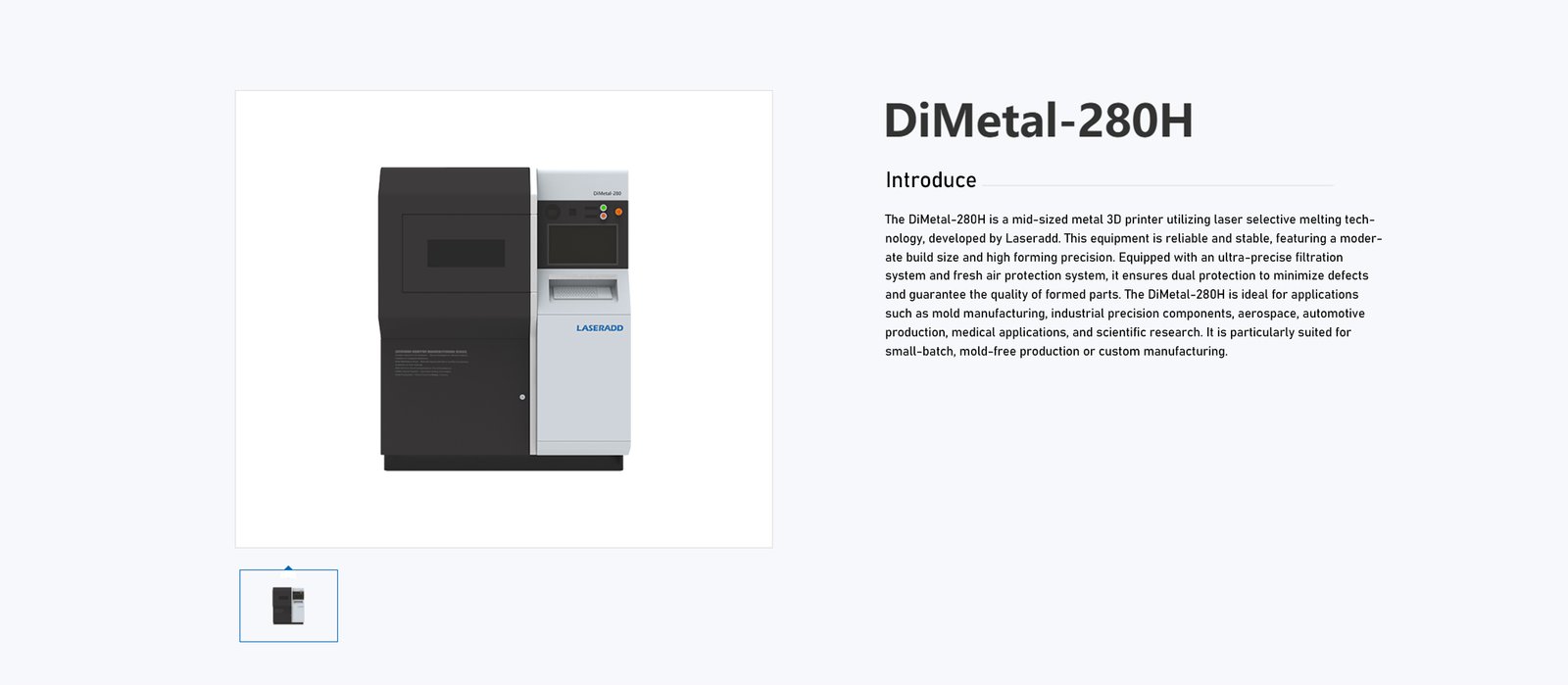

DiMetal-280H: The Mid-Sized Metal 3D Printer Utilizing Laser Selective Melting Technology

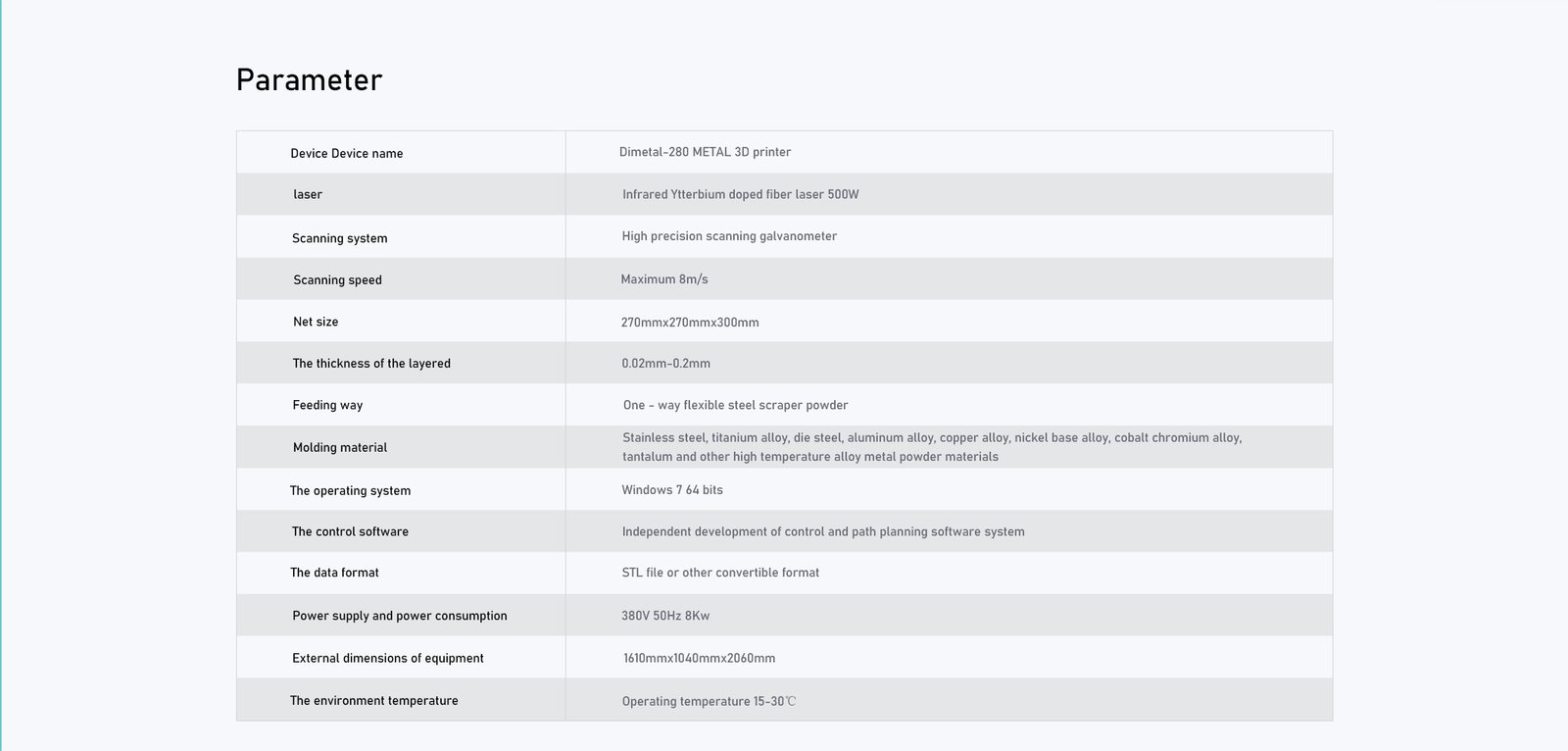

Parameter

1. Device name: Dimetal-280 METAL 3D printer
2. Laser: Infrared Ytterbium doped fiber laser 500W
3. Scanning system: High precision scanning galvanometer
4. Scanning speed: Maximum 8m/s
5. Net size: 270mmx270mmx300mm
6. The thickness of the layered: 0.02mm-0.2mm
7. Feeding way: One-way flexible steel scraper powder
8. Molding material: Stainless steel, titanium alloy, die steel, aluminum alloy, copper alloy, nickel base alloy, cobalt chromium alloy, tantalum and other high temperature alloy metal powder materials.
9. The operating system: Windows 7 64 bits
10. The control software: Independent development of control and path planning software system
11. The data format: STL file or other convertible formats
12. Power supply and power consumption: 380V 50Hz 8Kw
13. External dimensions of equipment: 1610mmx1040mmx2060mm
14. The environment temperature: Operating temperature 15-30℃
